Rasper Instructions
Author：hngoob Renew time：2020-02-22
Special warning In order to enable customers to better use the CM840-30 filing machine and to be safer in the operation process, the relevant matters will be emphasized and explained first. Please pay attention to the following matters in the use process.
I. Before leaving the factory, the distance between the filing knife and the outer surface of the rotor has been adjusted to 6mm. After the rotor rotates at high speed, the saw blade assembly is thrown out under the action of centrifugal force. The saw blade is 3mm higher than the outer surface of the rotor, i.e. the distance between the saw blade tip and the filing block is 3mm. When the saw blade is worn, the gap between the two becomes larger. Please adjust the distance between the filing knife and the rotor by yourself during use, but the distance between the two shall not be less than 6mm (the best working gap is 6mm-65mm). Otherwise, after the saw blade is tightened, the saw blade will encounter the filing block, and the saw blade will all be scrapped, causing major accidents.
II, CM840-30 filing machine before each boot, be sure to open the side cover to check whether the saw blade assembly moves left and right, must make it keep level with the rotor at both ends, can not have any left and right movement dislocation, otherwise, will cause danger.
III, filing machine before leaving the factory, layering and layering, layering and groove to match one by one, has been marked. During use, when the saw blade needs to be replaced after wear, the layering positions shall not be interchanged, and must be put in place according to the original position, otherwise the rotor will lose dynamic balance and there will be major accidents.
Note on marking: match marks are marked on the inner side (contact surface with saw blade) of each pair of battens, which are 1, 2, 3, ..., 119 and 120 in sequence. The rotor side is marked with layering installation sequence marks, which are 1, 2, 3, ... ... 119, 120 in sequence. Each pair of layering corresponds to the groove one by one and cannot be exchanged. Description of installation sequence of mating battens: when installing battens, the mating battens numbered 1 are installed in the grooves numbered 1, the mating battens numbered 2 are installed in the grooves numbered 2, ..., similarly, the mating battens numbered 119 and 120 are installed in the grooves numbered 119 and 120 respectively, and the two are matched one by one. Pay attention to the direction of the saw blade working surface (the direction with inclined surface on the saw tooth is non-working surface) and the rotation direction of the motor during the installation of the batten.
Important matters:
Please pay attention to the above clauses when using filing machine, otherwise, serious personal accidents will be caused.
2. Safety instructions
* Instructions with such signs must be observed. This can avoid damaging or damaging the machine or other device components.
* Work procedures with such instructions must be carefully implemented, or serious harm or physical injury will result.
* Pay attention to all safety instructions As far as the machine itself is concerned, local safety regulations are usually effective.
* Read the user manual The problem can usually be solved according to the instructions in this manual.
* The machine must be used according to approved processes and operating data.
* Repair the machine according to the instructions in this manual.
* Control the machine according to technical safety rules. Please be careful to ensure the safety of you and others.

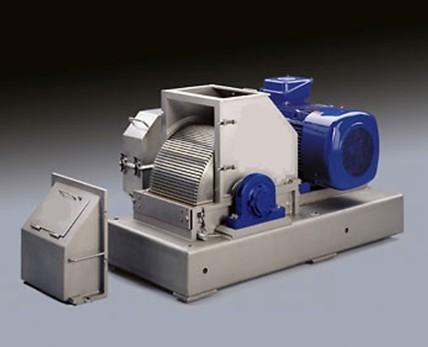

4. Structure description This equipment is a new product developed by Henan goob Industry Co., Ltd. by absorbing advanced foreign technology and combining with our actual production experience. It is special equipment for potato starch processing industry. Compared with the products of the same trade, it is composed of hundreds of saw blades and has the characteristics of high rotating speed, fine filing of materials, uniform particles, high starch free rate, large production capacity, high starch extraction rate, etc.
This product is of novel design and compact structure. It is mainly composed of saw blade assembly, rotor, filing knife, upper cover, side cover, bearing seat, frame, transmission device and motor. All the components form a device with a fairly strong foundation.
The frame supports all components and the rotor bearings are fixed on the frame. For quick inspection, an observation window with a handle is left on the side cover, which is quite necessary to observe the abrasion of the saw blade and remove foreign matters from the cavity of the filing machine. Two combined filing knives are installed on both sides of the rotor, allowing the rotor to rotate in both directions with high crushing rate.
At the same time, when one of the filing blocks wears out, it can be exchanged with the other. A screen is installed between the two combined filing knives under the rotor. In order to fix the screen firmly, a double tightening device is installed, which is driven by two tightening handles on both sides of the chassis. The rotor is a cylinder made of special stainless steel, with 120 grooves evenly distributed on its surface for installing saw blade components.
The saw blade assembly consists of two stainless steel battens with locating pins and a saw blade. Every two paired battens are marked with matching marks on the inside, which are indicated by Arabic numerals.
When replacing the saw blade, the two battens cannot be paired with other battens. Saw blade is a 500㎜ long steel quenched piece and is the main processing device for grinding and filing. After the saw blade assembly is inserted into the rotor groove along the axial direction, when the rotor rotates at a high speed of 2100r.p.m, the saw blade assembly will throw the assembly out under the strong action of centrifugal force f =16.3×106N and clamp it in the inclined plane of the rotor groove, thus fixing the saw blade optimally. The motor drives the rotor through a belt. The belt is covered with a completely closed protective cover.
5. Transportation and hoisting CM840-30 rasp, see attached figure 1 "structural diagram of rasp" (weight: 3500kg)
5.1 Solid round steel with a diameter of 30mm and a length of 1200 mm is usually used for transportation and hoisting.
5.2 Two round steels pass through the round holes on the side of the frame.
5.3 Tie the sling around the round steel (close to the frame) and fix it firmly.
5.4 The horizontal conveying machine shall be carried out along the ground as much as possible.
5.5 When the filing machine has been placed at the final location, find out whether the anchor bolt is easy to take out from the hole.
5.6 concrete foundation must be flat.
6. Installation
6.1 Check whether all parts of the machine have been provided.
6.2 The filing machine must be installed in such a way as to ensure easy maintenance and repair.
6.3 Place the filing machine on the concrete foundation and pour the foundation bolts.
6.4 It is recommended to lay a layer of fairly dry shrinkage-proof cement (20mm) on top of the concrete foundation.
6.5 Place the machine on this layer of cement and use a heavy rubber hammer to vibrate the machine.
6.6 Check whether the machine is kept level. (very important! ! ! )
6.7 After the cement is solidified, tighten the nut and add a lock nut.
6.8 Connect the flange on the back of the upper cover with the water pipe so as to inject cleaning water.
6.9 According to Figure 4 (Electrical Schematic Diagram of Filing Machine), connect the electrodes to the control cabinet. After connection, the motor junction box must be sealed in good condition and reliable.
6.10 Various tools and accessories provided at the time of delivery
1 saw blade pressure bar
1 rubber hammer
5 anchor bolts
1 screen
General provisions:
-Pay attention to prevent foreign matters from falling into the machine during installation. Before installation, the feed inlet must be blocked with a blocking cover.
7. Work before startup Since the filing machine is only one of the components of the whole process, it is necessary to pay attention to the relevant instructions. Before the filing machine works, the following important matters must be paid attention to:
7.1 Check that the transmission parts, motors and main shafts shall be operated flexibly without sticking and fasteners shall not be loose.
7.2 it is forbidden to sand, iron and wood and other foreign bodies into the shell. Because once entering, it will cause serious damage. Materials must be clean and separated from those hard rigid objects. Ensure that the inside of the machine, the transmission parts and the surroundings of the machine are clean and free of foreign matters.
7.3 Check whether the two pulleys are calibrated and must not be misaligned. Check whether the toothed belt is tensioned. Adjust if necessary! ! See Figure 3 on page 19.
7.4 Open the side cover (position 12) and check the clearance between the outer surface of the rotor and the combined filing knife (excluding the saw blade) to be 6mm ≤ L ≤ 6.5mm.
7.5 Check whether the screen tension handle (positions 7 and 8) has been placed in the screen tension position.
7.6 Check that the saw blade assembly is correctly and completely assembled without any shortage, and make both ends of the saw blade assembly flush with both sides of the drum (very important! ! ! ), no saw blade assembly may protrude from the rotor edge.
7.7 check bearing lubrication condition is good.
7.8 Check that the electrical appliances and circuits are in good condition, without damage, the devices are reliable in operation, and the insulation is good.
7.9 Check whether the rotation direction of the rotating drum is in the same direction as the rotation of the motor, and face it from one end of the drive belt wheel, and rotate counterclockwise.
7.10 Check whether all bolts (including anchor bolts) are tight and reliable without looseness.
7.11 Start the drive motor when the maximum speed has been reached;
7.12 Start the screw conveyor;
7.13 Adjust the screw conveyor to the required value.
7.14 Check whether the motor exceeds the maximum amperage.
Important matters:
-The V-belt shall be adjusted to have a deflection of 10mm
when the belt is pressed in the middle by 3.7kg weight. (See Figure 3 on page 19). -When the rotation direction of the rotor must be reversed, the screw conveyor must be emptied and the rotor must completely stop rotating.
-After shutdown due to accident, clean up all potato chips and sundries in the machine before restarting.
8. Maintenance during operation
Important matters Please pay attention to safety when maintenance is necessary during work! Knowing the sharpness of the saw blade, you must wear working gloves when replacing the screen or saw blade. When maintenance is necessary, please note that the rotor must not be started and the switch must be pulled open.
8.1 In case of abnormal noise in the equipment cavity during work, please immediately close the gate valve above the screw conveyor and filing machine, stop feeding and close the filing machine. Open the observation window (position No.19) on the side cover to check the situation. If hard objects are found, please take them out immediately and find out the reason.
8.2 When the filing ability drops, open the observation window cover (position 19) and check the usage of the saw blade. Replace if necessary. See clause 11 "saw blade replacement" on page P8.
8.3 Check the condition of the combined filing knife (position 40) every week.
8.4 check the distance between the combined filing knife and the outer surface of the rotor (6~6.5㎜). If necessary, adjust the slot between the filing knife and the rotor by adjusting the hexagon socket head cap screw (position 37). First loosen the screw at position 34 and adjust the hexagon socket set screw at position 37. After adjustment, the screw at position 34 must be firmly tightened!
8.5 Check the usage of the screen every week. The damaged screen must be replaced. See clause 13 "screen replacement" on page P11.
8.6 During operation, the temperature of the bearing must be checked regularly. Bearing temperature rise should not exceed 40℃ of normal working temperature! It is strongly recommended to install a temperature indicator. Specific installation methods can be sought from Henan Gubo Industrial Co., Ltd.
8.7 According to Clause 14 "Bearing Lubrication Instructions" on page P12, if re-lubrication is required, inspection shall be conducted.
8.8 Check the tension and condition of V-belt every week. If necessary, tighten by adjusting the bolt at position 46.
8.9 The observation window cover (position: No.19) must be opened for each shutdown to check whether there are hard and rigid objects (such as stones, iron blocks, wood blocks, etc.) in the cavity. Only when the rotor stops completely can the housing be opened!
8.10 Always check whether the radiating fins on the outer surface of the motor are dirty. If necessary, clean up!
8.11 Check frequently whether anchor bolts and nuts are loose. Tighten if necessary.
9. Stop operation
9.1 Close the screw conveyor and close the gate valve.
9.2 When there is no material in the hopper, open the flushing water for flushing. The flushing time is about 10 minutes.
9.3 Keep the rotor running inertia until it stops completely.
9.4 When the filing machine stops working for more than 2 days, remove all saw blades, apply antirust oil to prevent rusting, and clean and place the layering. Note: When removing the saw blade, note that the bead and rotor groove are matched one by one! When reinstalling the saw blade, the saw blade assembly must be placed in the corresponding groove!
10. General maintenance Important matters Please pay attention to safety when maintenance is necessary during work! Knowing the sharpness of the saw blade, you must wear working gloves when replacing the screen or saw blade. When maintenance is necessary, please note that the rotor must not be started and the switch must be pulled open.
10.1 Weekly/Daily or when necessary: Replace the saw blade and screen, lubricate the bearing with grease and carry out general cleaning.
10.2 After 1000 working hours, carry out maintenance and wear inspection: bearings, combined milling cutters, toothed belts, screens and moving parts. After
10.3 25000 working hours, overhaul inspection shall be conducted.
10.4 When the rasp stops working for a long time, be sure to take down all the saw blades, screens and loosen the belt, and smear a layer of antirust oil on all the saw blades and wrap them in oil paper for storage. The rotor is often lubricated by hand. A very important matter -For safety reasons, the rotor must be checked every year for damage or cracks. This inspection must be conducted through a magnetic recording system or an ultrasonic system. This inspection can only be carried out by experts.
